HEAVY COATED GALVANIZED WIRES

  • HEAVY COATED GALVANIZED WIRES
  • Durmaz Celik has a production line which is capable of producing at international standards in accordance with customer demands and equipped with the latest technology automatic control systems.
  • GET OFFER
RAW MATERIALS
WIRE RODS and ZINC NORMATIVE REFERENCES
SAE 1006 SAE 1018 Çinko %99,995 - EN 1179 Z1
SAE 1008 SAE 1045
SAE 1010 SHG Zinc %99,995 - EN 1179 Z1

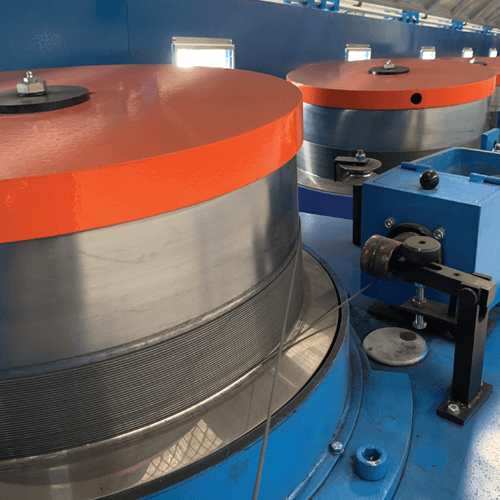

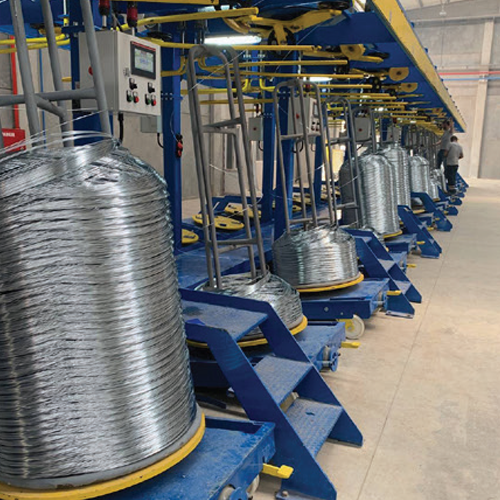

Our galvanized wire production is based on the principle of plating the cold drawn wires produced in wire drawing machines by immersing them in the molten zinc pool.Commercial and heavy coated wires production can be made according to the usage areas or preferences of our customers. Corrosion resistance varies depending on where the wire is used and the amount of coating. Our company offers hot dip galvanized wires with high corrosion resistance and international standards with bright surface, controlled coating, a perfectly balanced zinc-iron alloy with our high performance production equipment and quality control center.

PACKING FORMS
  MINI PACKING STANDART PACKING MAXI PACKING
DIAMETER 1,00 - 2,00mm 2,00 - 4,50mm 4,50 - 8,0mm
D 550 - 560mm 750 - 850mm 1000 - 1100mm
d  300 - 350mm  420 - 500mm 530 - 550mm
h 500 - 550mm 700 - 800mm 1000 - 1100mm
COIL WEIGHTS 350 - 500 KG 500 - 800 KG 800 - 1200 KG
L (Unwinding) Anticlockwise Anticlockwise Anticlockwise

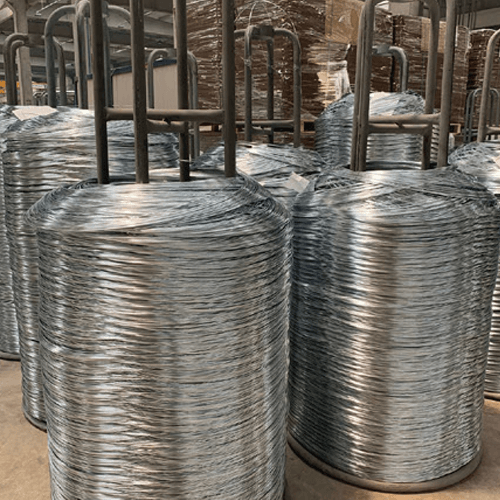

The coils tied by steel strap and wrapped with nylon.Lifting eyes upon request.

Galvanized wires mainly used for the production of below materials
Chainlink fence Welded mesh Security mesh Vineyards Barbed wire
Coathanger Ceiling hook Cable armouring Welded panels Field fence
Welded panels Chicken cages Tomato hook Chicken cages Steel wool
TENSILE STRENGHTS
  DIAMETER TENSILE STRENGHT ZINC COATING
SOFT 1,0mm -8,0mm 350MPa - 500MPa Commercial / Heavy coating
HARD 1,0mm -8,0mm 5000MPa - 500MPa Commercial / Heavy coating
HIGH TENSILE 1,0mm -8,0mm 850MPa - 500MPa Commercial / Heavy coating
ZINC COATING CLASSES / EN 10244-2
DIAMETER  CLASS A CLASS AB CLASS B CLASS C CLASS D
  g/mm² g/mm² g/mm² g/mm² g/mm²
0,90 - 1,00mm 155 110 70 55 25
1,00 - 1,20mm 165 115 80 60 25
1,20 - 1,40mm 180 125 90 65 25
1,40 - 1,65mm 195 135 100  70  30
1,65 - 1,85mm  205 145 100  75 30
1,85 - 2,15mm  215  155 115  80  40
2,15 - 2,50mm  230 170 125 85  45
2,50 - 2,80mm  245  185 125 95  45
2,80 - 3,20mm  255 195  135 100  50
3,20 - 3,80mm  265 210  135  105  60
3,80 - 4,40mm  275 220  135  110 60
4,40 - 5,20mm  280 220  150  110 70
5,20 - 8,20mm  290     110 80
